Customer: Siiri N., customer of the addition to Pirita's home. property: Near Pirita Velodrome, Pirita.
1. Inspection and measurement: the heating area of the extension is 40 m², the 7-centimeter leveling pour brings the floor to the same level as the older part of the house, and the house's central heating is the source of heat.

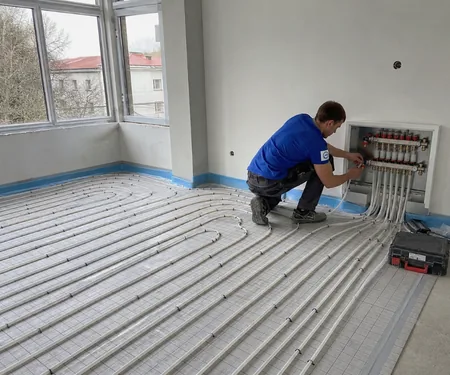

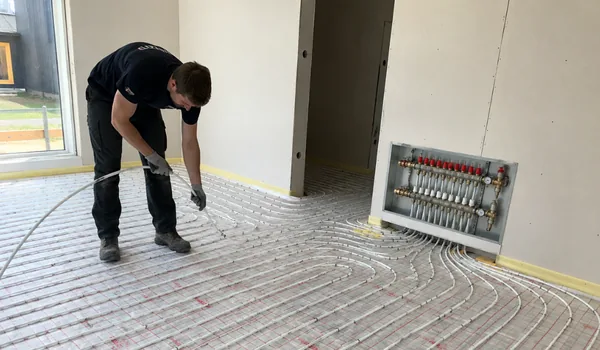

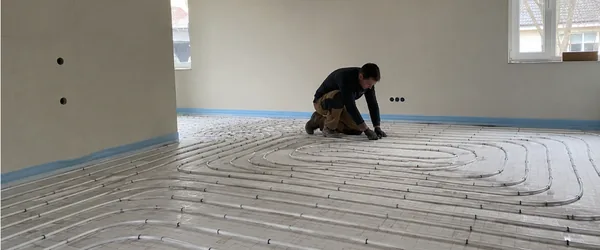

2. Installation and protection: the access path was under a protective film, the 16-mm PE-RT pipe went in a 15-cm step along the 20-cm and cold outer wall in the living room, and the 4 circles got a number on the manifold that coincides with the same number on the floor plan.
3. Testing and handover: the circuit was pressurized to 6 bar and the pressure was maintained for 60 minutes before leveling, and the distance of each circle from the walls was measured on the installation card.
4. Start-up: the first switch-on was 21 days after the pain, the temperature increased by 5 degrees per day, and the manifold mixes the water going into the floor to 35 degrees.
Invoice: water-based underfloor heating installation with manifold, 40 m² × €28; call-out within Tallinn, 3 × €7.40. Total €1,142.20 including VAT; pipe, manifold and leveling casting are not included in the labor price.
Working time: 3 working days for pipe and manifold installation, pressurization, leakage control and leveling casting by the customer's builder; the first switch-on was 21 days after pain (2024, handover report no. 49812).
Result: 40 m² of the extension is heated by 35-degree floor water from the same boiler that heats the older part of the house.
